該機采用雙端面機械密封，具有可靠性和耐用性，并配有與研磨物料相容性的冷卻液，減少對研磨物料的污染。適用于涂料、油漆、油墨、農藥等行業的物料研磨，能將物料顆粒的聚體化，通過強力的研磨短時間內達到要求的細度。操作使用簡單，可靠性好，生產效率高，能滿足用戶的需要。
The machine adopts double-acting mechanical sealing with reliability and durability, mated with the Cooling liquid compatible to the ground material in order to reduce the pollution of ground material, suitable for grinding materials in coating, oil painting, printing ink and pesticide industries. It makes the material into aggressiveness and give the strong grind so that the grains reaches the required fineness in short time. The machine is easily operated with reliability and high production efficiency. Depending to different requirements, the different models of machines can satisfy with customers.

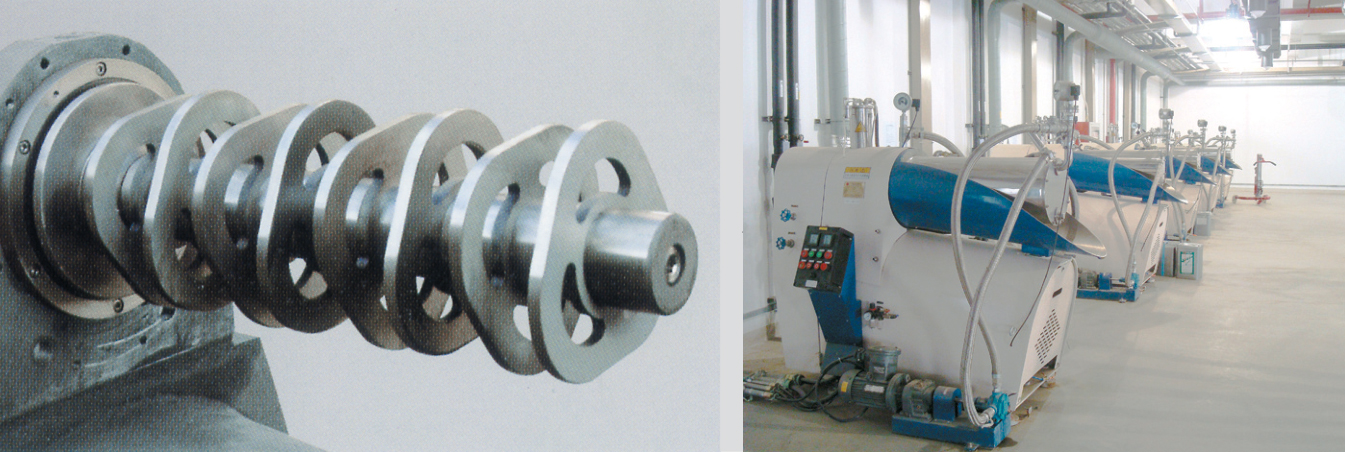

此型式的分散盤在槽孔和多輪廓的作用下，使研磨介質的球體產生強烈的碰撞和磨擦，使物料得到高效率的研磨分散。
The type dispersing disk is functioned by the slot hole and multiplied profiles to produce the strong bump and friction among mediate ball bodies. Therefore, the material can be ground and dispersed in high efficiency.

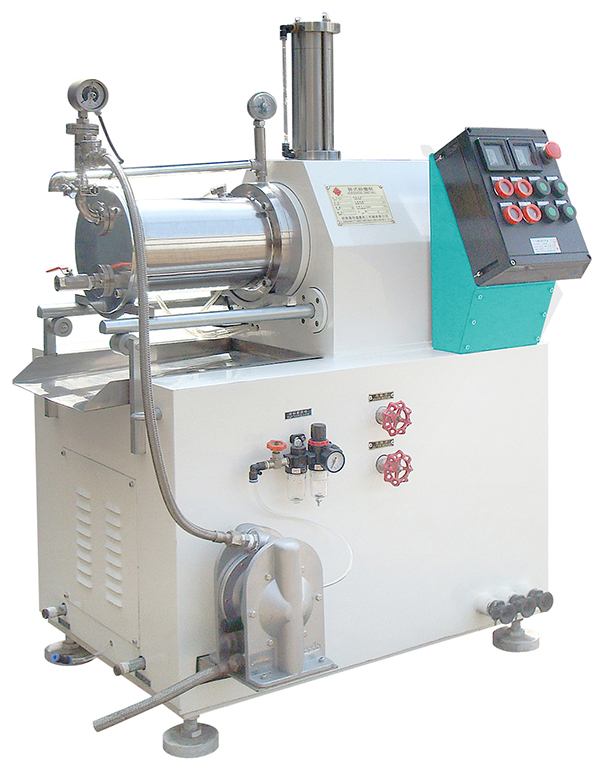

SW-5A臥式砂磨機
| 規格 Type | SW-5A | SW-15A | SW-20A | SW-30A | SW-50A | SW-250A |
筒體容積 | 5 | 15 | 20 | 30 | 50 | 250 |
電機功率 | 5.5 | 11 | 18.5 | 22 | 37 | 75 |
產量范圍 | 20~100 | 30~200 | 40~300 | 50~600 | 100~1000 | 1500~2000 |
分散細度 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 | 2-20 |
輸送泵形式 | 隔膜泵/齒輪泵 Diaphragm pump/ Gear pump | |||||
