CJ 稠漿式攪拌機
攪拌與分散
CJ 稠漿式攪拌機
通過強力的攪拌形態:攪拌、混合、分散使物料在較短時間內達到要求。

◆ 通過強力的攪拌形態:攪拌、混合、分散使物料在較短時間內達到要求。

◆ 達到產品要求的物料,通過料筒底部的氣動閥用輸送泵將物料從筒內排出,可直接灌裝到容器內。

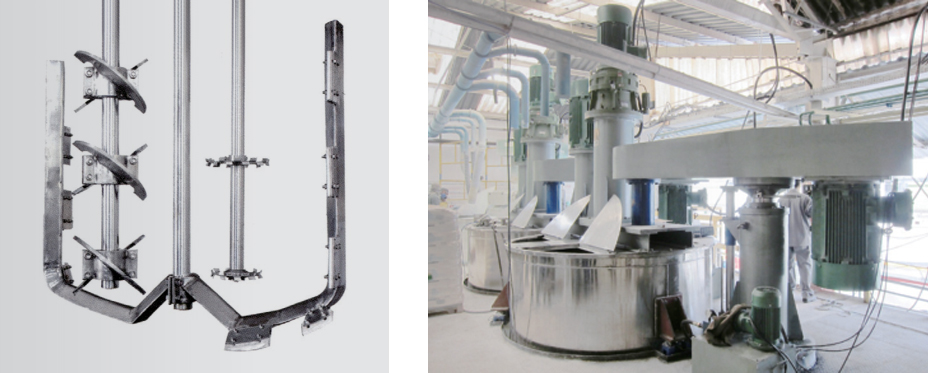

◆ 攪拌器在料筒內壁間有刮料結構,可使較稠的物料通過刮板不粘結在筒壁上。

◆ 使用水性物料時,更換顏色及產品時,沖洗簡單。

◆ 采用主機和鋼平臺的組合結構,可一次性安裝到位,方便生產,操作簡單。

◆ 主機功率,配備合理,可適應多種稠(厚)漿型產品。


◆ Powerful mixing and dispersing capability to make material meet demand in short time.

◆ Finished material can be packed into container directly via pneumatic valve and transmission pump at the bottom of tank.

◆ There is material collecting device on mixer inside the tank to make tank clear,no material sticking inside the tank.

◆ Easy cleaning when change color and products also for water based material.

◆ Easy installation for combination of main unit and steel platform. Also easy production and operation.

◆ Various main unit power for different viscosity paste material.




規格TypeCJ1M3CJ1.5M3CJ2M3CJ2.5M3CJ3M3CJ4M3CJ5M3

  料缸容積
  Barrel capacity (m3)

11.522.5345

  分散功率
  Dispersing motor (kw)

30-3745-5555-7575-9075-9090-110110-132

  分散軸轉速
  Dispersing speed (r/min)

1500150015001200120010001000

  錨式攪拌功率
  Anchor motor (kw)

111518.522222222

  錨式攪拌轉速
  Anchor speed (r/min)

30202020202020

  螺旋攪拌功率
  Helix motor (kw)

7.511151518.52222

  螺旋攪拌轉速
  Helix speed (r/min)

170170170170170170170
