CDS-2實驗室臥式砂磨機是研磨缸呈水平狀的，研磨器為轉子棒銷型的研磨分散設備，適用于對固、液兩相懸浮體進行超細研磨。主機采用變頻調速，操作采用觸摸屏控制(非防爆型)，菜單式管理，操作簡單方便。廣泛應用于涂料、油墨、非金屬礦超細粉體、染料、磁記錄材料等工業部門及大專院?？蒲性核膶嶒炇?，本機使用方便，是實驗室必備的超細研磨試驗設備。

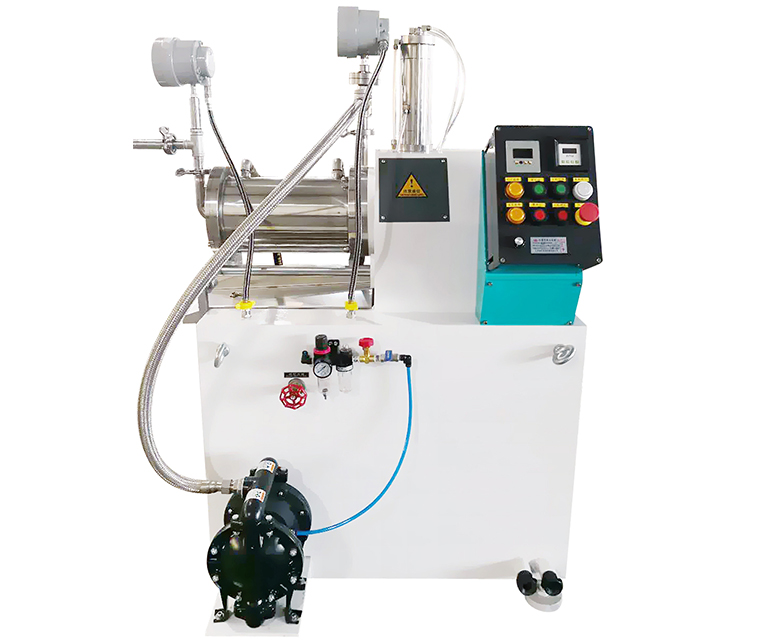

The milling vessel of the CDS-2 is in horizontal state, the grinder made in rotator pin mode for milling and dispersing. Suitable to have extra-fine milling of solid-liquid suspensoid. The main machine adopts frequency variable speed regulating and the operation is carried out by contact screen (non-explosion-proof ), with menu-type management therefore it is simple and convenient to operate. It is widely applied in coating, ink, super fine powder of nonmetalliferous ore, dyes, magnetic recording material, etc of industry department and the laboratory of LA colleges. This model is easy to operate. It is the must for super milling in laboratory.
注：研磨器的材質有合金鋼、全氧化鋯材料(含筒體內壁)，全氧化鋯材料的研磨器盡可能的減少物料的污染。本機有防爆型和非防爆型兩種供選擇。
Notes: The material of grinder has alloy steel, full-zirconia material (including the inwall of tank), full-zirconia material grinders can be capable of reducing pollution as much as possible. The machine has two options: explosion-proof and non-explosion-proof.
CDS-5
| 型號 Type | CDS-2 | CDS-5 |
| 主機功率 Main unit power (kw) | 3~4 | 5.5~7.5 |
| 研磨腔容積 Vessel capacity (L) | 2 | 5 |
| 產品最高流量 Maximun ?ow rate (L/h) | 5~20 | 10~100 |
