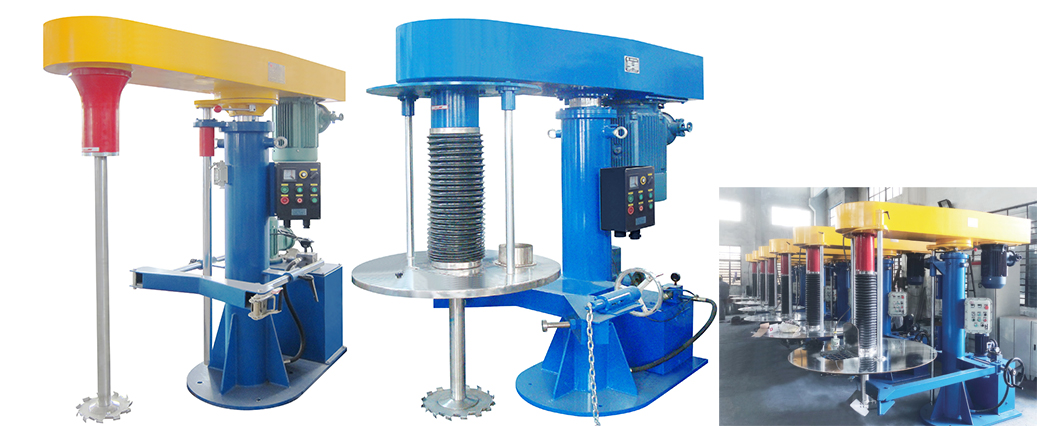

本產品是對兩種或多液體和粉體狀物料進行攪拌、溶解和分散的高效設備，不但能單獨使用，也可以與各種型號砂磨機配套使用。適用于油漆、油墨、涂料、染料、造紙等化工行業，對固液相物料進行濕法分散、混合。使用變頻調速，液壓升降，生產連續性強，分散效果好，使用和維護簡單方便。
It can mix, dissolve and disperse two or more kinds of liquid and powder material. It can both works single and together with some other sand grinder. Suitable for producing paint, ink, coating, dyestuff, paper making and so on in chemical industry, the mixers are used for wet dispersing and mixing liquid-solid material. Non-grade speed adjustment by frequency converters, hydraulic elevating, working steadily, use and maintenance expediently.
| 規格 Type | GFJ1.5 | GFJ4 | GFJ5.5-7.5 (GFJ11) | GFJ22 (GFJ30) | GFJ37 | GFJ45-75 | GFJ90-200 | |
| 電機功率 Motor power (kw) | 1.5 | 4 | 5.5-7.5 (11) | 22 (30) | 37 | 45-75 | 90-200 | |
| 分散軸轉速 Speed (r/min) | 0~1450 | 0~1450 | 0~1450 | 0~1450 | 0~1200 | 0~1200 | 0~1000 | |
| 分散輪直徑 Diameter (mm) | 150 | 200 | 250 | 350 | 400 | 450 | 600 | |
| 升降行程 Lift (mm) | 800 | 800 | 900 | 1200 | 1200~1500 | 1500~2000 | 1800~2800 | |
| 泵功率 Pump power (kw) | 0.55 | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 | 3 | |
| 罐容量 Capacity (L) | 50 | 200 | 400~600 | 600~1000 | 1000~2000 | 1000~2500 | 5000~8000 | |
| 重量 Weight (kg) | 360 | 400 | 800 | 1500 | 1700 | 2100 | 2600~3000 | |
外形尺寸 | A | 1260 | 1260 | 1770 | 2140 | 2140 | 2600 | 2700 |
| B | 1340 | 1300 | 1700 | 2260 | 2260 | 2800 | 3000 | |
| C | 600 | 600 | 900 | 1100 | 1100 | 1200 | 1600 | |
| Wide | 460 | 460 | 580 | 800 | 800 | 1000 | 1000 | |
